pySPWB

Measurement signal processing — spectra, transfer functions, spectrograms and adaptive filtering — free, and on any machine.

Objective

Signal processing software has traditionally been expensive, and tied to the instrument or the licence that came with it. Someone with a recorded vibration, a microphone file, or a hammer test has a straightforward question to ask of it — and has usually had to buy a seat, or borrow one, before asking. pySPWB removes that step entirely: it is free, open source, and it runs on the machine you already have.

It is the successor to the LabVIEW Signal Processing Work Bench, which Charette AI Group open sourced when it reached end of life. Rather than retire the software, it was rebuilt in Python so it could keep growing without LabVIEW — and it now runs on Windows, macOS and Linux, where the original ran on Windows alone.

Who it is for

  • Vibration and acoustics engineers — frequency response of a structure, coherence between a hammer and an accelerometer, sound pressure level in dB against 20 µPa
  • Students learning DSP — where windowing, leakage and averaging stop being formulas and become something you can watch happen
  • Teachers and lab courses — nothing to install and no licence server; every analysis window has a manual that works through data the application generates itself
  • Consultants and small companies who cannot justify a measurement software licence, and no longer need one
  • Researchers who script — the whole processing layer is an importable Python library with no user interface attached

Features

Five analysis windows that share their signals: send the same measurement to an FFT, a transfer function and a spectrogram at once, and they stay in step as you change what is selected.

Time Data Processing

  • Load a measurement, plot it, and condition it: scale and calibrate, offset, resample, truncate, normalise
  • Statistics and time-varying metrics beside the plot — RMS, crest factor, kurtosis, trends
  • Reads HDF5, TDMS, WAV and CSV, plus RPC-III, Nastran punch and HEAD acoustics files

FFT Analysis

  • Averaged auto power spectra with the window, overlap and frequency resolution you choose
  • A-weighting and dB references for acoustics, band RMS and energy over a cursor range, harmonic markers
  • Instrument amplitude conventions: a 1 V sine reads 1 V, and a 94 dB calibrator reads 94 dB

Transfer Function

  • H1 and H2 estimators; magnitude, phase, real and imaginary, Nyquist
  • Coherence plotted alongside, so you can see which parts of the response the measurement supports and which are noise dressed up as a resonance

Time-Frequency

  • A colour spectrogram for anything that will not hold still — run-ups, sweeps, impacts, speech, transients
  • Cursors cut a slice in time or in frequency, and the slice plots as an ordinary spectrum

Adaptive Filtering

  • The LMS family — plain, normalised, and two noise-cancelling variants — adapting a filter that subtracts whatever a reference signal can explain
  • Convergence is plotted, so you can see whether it worked rather than hope

Two ways to run it, and neither needs the other

The application and the library are the same code, and you can take whichever half suits you.

  • Download and run — the program, the Python it runs on and every library it needs, in one folder. No Python to install, no packages, no administrator rights, no installer. Unzip it and run it.
  • pip install spwb — for notebooks, scripting and Linux. One wheel for all three operating systems, Python 3.10 or newer, and the library imports with no user-interface code anywhere near it.

The numbers are not approximations

A signal processing tool is only worth having if you can quote what it prints. pySPWB's results are pinned to reference data generated by driving LabVIEW 2022 itself, and that comparison runs automatically on every change — so a spectrum, transfer function or spectrogram you obtained with the original LabVIEW software still comes out the same here.

Its native file format is plain HDF5, an open standard that MATLAB, Julia, R and HDFView read without pySPWB installed, so measurements never become hostage to the tool that recorded them. Every downloadable build is checked on its own platform before release: it has to open all five analysis windows, write and re-read an HDF5 file, and return the right numbers for a spectrum and a transfer function, or it is not published.

Download

Free standalone application — one folder, no installation and no Python required.

Download for Windows Download for macOS Source on GitHub

Both buttons bring you to the GitHub release page: scroll down to the Assets section and click SPWB-windows-x64.zip for Windows, or SPWB-macos-apple-silicon.zip / SPWB-macos-intel.zip for macOS. Unzip the whole folder and keep it together — the program needs the files beside it.

On Linux, or to use it as a library in a notebook, install it from PyPI instead: pip install spwb[gui] for the application, or pip install spwb for the library alone.

Windows may show a SmartScreen notice on first run because the download is unsigned; choose “More info”, then “Run anyway”. On macOS, right-click the app and choose “Open” the first time. Every release also carries a SPWB-checksums.txt so you can verify exactly what you downloaded.

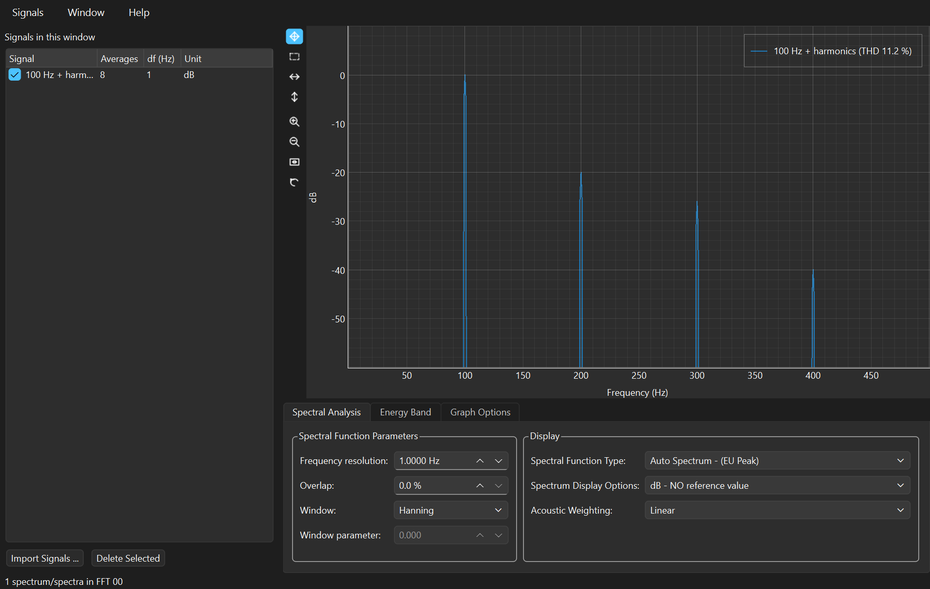

The pySPWB FFT Analysis window showing a spectrum with harmonic markers Visit the pySPWB Site

Screenshots of all five analysis windows, and the user manuals.

The Library on PyPI

For notebooks and scripts: pip install spwb

The Original LabVIEW SPWB

Open sourced when it reached end of life.
